Key Features |
- 3 Dimensional motion makes a mixing in all direction
- Variable speed control with frequency drive
- Programmable controller
- Contamination free mixing with closed container
- Thorough mixing with regulated effect.
- Trolley to facilitate easy handling of high capacity jar during loading and unloading of the charge.
- Safety cage.
|
Application Area |
- Powder coating technology
- Pharmaceutical Industry
- General Industry
- Painting Application
|
|

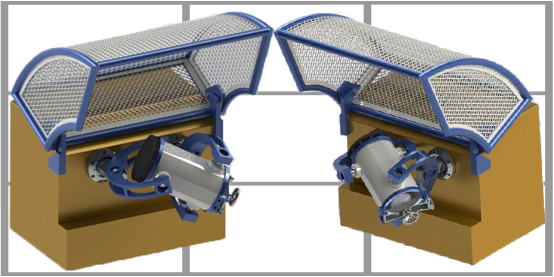

Eloquent Inversion mixer makes a 3 dimensional motion mixing in all direction for dry or wet material of different sizes.The variable speed control with frequency drive and programable controler controls regulated mixing and blending effects
Principal of Operation
Three dimensional motion of the jar mixes the material in recurrent, dynamic motion kept inside the jar due to inversion kinematic effects. The regulated homogenizing mixing is due to rotational and multiple directional motion of material inside the jar..
|
Technical Specifications |
| |
EIM-2 |
EIM-5 |
EIM-10 |
EIM-20 |
EIM-30 |
EIM-50 |
| Power |
0.75 KW(1HP) |
0.75 KW(1HP)
|
0.75KW 1HP)
|
1.5KW (2HP)
|
1.5 KW (2 HP)
|
3.75 KW (5 HP)
|
| Electrical Details |
230 V /3~,50Hz,2 pole,6Amps |
230 V /3~,50Hz,2 pole,6Amps |
230 V /3~,50Hz,2 pole,6Amps |
230 V /3~,50Hz,2 pole,10Amps |
230 V /3~,50Hz,4 pole,10Amps |
415 V /3~,50Hz,4 pole,16 Amps |
| Dimensions |
|
|
|
|
|
|
| Operating principle |
3 Dimensional Motion |
| |
Capacity |
Upto 2 liter |
2 - 5 liter |
10 liter |
20 liter |
30 liter |
50 liter |
Effective Capacity |
1.6 Liter |
1.6 to 4 Liter |
8 Liter |
16 Liter |
24 Liter |
40 Liter |
| RPM of Jar |
50 |
50 |
50 |
40 |
40 |
30 |
| Material of Jar |
Stainless Steel, Hardened Steel, |
Stainless Steel, Hardened Steel, |
Stainless Steel, Hardened Steel, |
Stainless Steel, Hardened Steel, |
Stainless Steel, Hardened Steel, |
Stainless Steel, Hardened Steel, |
 |
|
